Insulated Garage Door: Compare U-Factor, R-Value and Seals

An insulated garage door is most useful when the garage is attached, has a room above it, doubles as a workshop, or faces prolonged heat or cold. For a detached garage used only for vehicle or tool storage, a basic insulated or non-insulated door may be adequate.

Do not choose on a large R-value alone. Compare the whole-door U-factor, panel construction, perimeter seals, thermal breaks, windows and exact door configuration. A well-insulated panel surrounded by failed weather seals will still allow drafts.

Match the door to the garage

Garage use	Practical starting point
Detached, unconditioned storage in a mild climate	Compare non-insulated and basic insulated doors; prioritize durability, fit and weather seals.
Attached garage in a moderate climate	Consider a double- or triple-layer insulated steel door with good section and perimeter seals.
Bedroom or conditioned room above the garage	Favor a lower whole-door U-factor, but also inspect the insulation and air barrier between the garage and living space.
Workshop, gym or frequently occupied garage	Compare lower U-factors, thermal breaks, insulated glazing and a durable interior skin.
Long periods of severe heat or cold	Compare polyurethane construction with less expensive polystyrene doors.

Insulating the overhead door does not turn a garage into conditioned living space. In an attached garage, the garage-to-house boundary remains critical. The U.S. Department of Energy’s Building America Solution Center calls for a continuous air barrier between the garage and conditioned space because leaks can admit carbon monoxide and other contaminants into the home (Building America Solution Center).

Read R-value and U-factor correctly

The two ratings describe different aspects of thermal performance:

• R-value measures resistance to heat flow; higher is better. For sectional garage doors, a published R-value commonly describes an individual door section or insulation material.
• U-factor measures heat transfer through the complete door assembly; lower is better.

They are not simple reciprocals for sectional doors. Overhead Door distinguishes a mathematically calculated section R-value from the U-factor for a complete door system (Overhead Door). Amarr similarly says a door U-factor generally includes sections, tracks, hardware and options such as windows (Amarr).

When comparing quotes:

1. Compare U-factor with U-factor—not one door’s U-factor against another door’s R-value.
2. Confirm that the rating applies to the quoted size, construction and window package.
3. Ask what test method produced the rating and whether it has independent verification. DASMA lists ANSI/DASMA 105-2017 as its test method for garage-door thermal transmittance and air infiltration (DASMA).
4. Treat an insulation-material rating as different from a whole-door rating.

There is no single R-value every homeowner needs. Climate and garage use matter, but so do the surrounding walls, ceiling and air sealing.

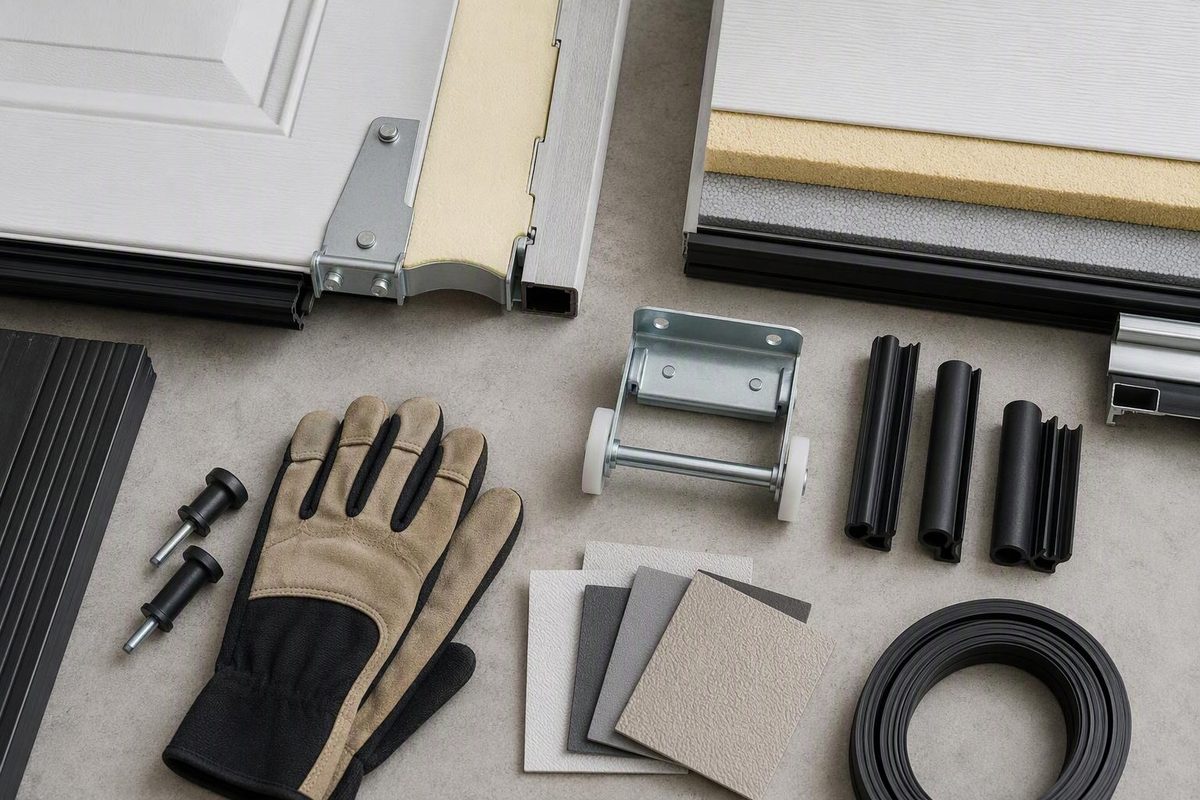

Choose the construction, not just the foam

Most insulated steel doors use one of two materials:

• Polystyrene: Rigid boards fitted into the door sections. This is generally the lower-cost choice and improves performance over an uninsulated door.
• Polyurethane: Foam injected between door skins, where it expands and bonds to the section. It generally provides more thermal resistance and section stiffness than polystyrene at a similar thickness.

Clopay’s construction guide describes both methods and notes that injected polyurethane bonds to the door frame as it expands (Clopay).

Also check the layer construction:

• A double-layer door generally has exterior steel plus insulation, often with vinyl backing on the garage side.
• A triple-layer door sandwiches insulation between exterior and interior steel skins.

The interior steel skin gives the garage side a more durable, finished surface. Amarr describes double-layer doors as an insulated option for attached garages in moderate climates and triple-layer doors as adding an interior steel skin, greater durability and quieter operation (Amarr).

Thermal breaks and seals between sections also matter. Windows can change whole-door performance, so request the rating for the windowed configuration rather than assuming the solid-door figure applies.

Inspect the seals before paying for more insulation

With the door closed, inspect it from inside during daylight:

• Is light visible at either jamb or along the header?
• Does the bottom seal contact the floor across the full width?
• Is the bottom seal hard, split or flattened?
• Is the floor too uneven for the existing seal profile?
• Are the seals between sections intact?
• Does the door sit squarely rather than leaving a tapered gap?

A replaceable perimeter seal or garage door bottom weather seal may address a specific gap more directly than a higher-R door. A crooked door, damaged track or uneven cable tension is not a weatherstripping problem. Stop operating the door and have the mechanical fault assessed.

Factory-insulated door or retrofit kit?

A factory-insulated door is the more complete choice when the existing door is damaged, poorly sealed or already due for replacement. Its sections, joints, skins and counterbalance system can be selected as one assembly.

A retrofit kit can make sense when an otherwise sound, uninsulated sectional steel door has exposed channels intended to retain insulation. Read the rating carefully. Owens Corning, for example, lists R-8 fiberglass panels for a kit covering an uninsulated metal door up to 9 feet wide by 7 feet 4 inches high. That R-8 is the kit insulation’s performance under ASTM C177, not a published whole-door U-factor (Owens Corning).

Before adding a kit:

1. Identify the door manufacturer and model; check its instructions and warranty.
2. Measure every section cavity rather than relying only on nominal door size.
3. Confirm the kit is intended for a moving sectional door and has a durable facing.
4. Keep insulation clear of hinges, rollers, struts, fasteners, warning labels and pinch points.
5. Find the kit’s total installed weight and arrange a balance check if the manufacturer does not confirm compatibility.

Springs counterbalance the door’s weight, and spring selection depends on door weight, height and track configuration (Clopay). Adding insulation can therefore change the balance. If the door becomes unusually heavy, rises by itself, drops, binds or hangs crooked, stop using it. Spring and cable adjustment is stored-energy work, not the next DIY step; see how garage door spring adjustment should be handled.

Use this quote checklist

Give each bidder the same specification:

• Finished opening width and height
• Sideroom, headroom and backroom
• Door model and layer construction
• Insulation material and thickness
• Whole-door U-factor and section R-value, clearly labeled
• Rating for the exact window option
• Thermal breaks and between-section seals
• Included jamb, header and bottom seals
• Interior backing material
• Door weight and matched spring system
• Opener compatibility
• Required wind-load or impact approval, where applicable
• Warranty coverage for sections, finish, hardware and insulation

Insulation does not replace correct fit or required structural approval. Verify the opening and operating clearances with the garage-door measurement guide, then compare complete door configurations rather than isolated insulation numbers.
